Lenovo ThinkCentre PC M70t TWR | 12U6003PAX | GEN 5 I7-14700, 8GB DDR5 512GB DOS

Up to 14th Gen Intel® Core™ i7 with Intel vPro® Enterprise

• Windows 11 Pro
• Windows 11 Home
• Windows 11 IoT
• Ubuntu Linux®

• Intel® UHD 770 graphics
• Optional: Intel® Arc™ A310
• Optional: NVIDIA® GeForce RTX™ 3050
• Optional: AMD Radeon RX 6600LE
• Memory
  Up to 64GB (5600MHz) 2 x DDR5 UDIMM
  Storage

  Up to 2TB M.2 Gen 4 performance SSD (2280) Up to 2TB SATA 3.0 HDD (3.5")
  Power Supply Unit

  • 380W (92% energy efficient)
  • 310W (92% energy efficient)
  • 260W (90% energy efficient)
  • 180W (85% energy efficient)
  • Connectivity

    Ports/Slots

    Front:

    • USB-C® (USB 5Gbps)
    • 4 x USB-A (USB 5Gbps)
    • Mic
    • Headphone / mic combo
    • Optional: Card reader (3-in-1)

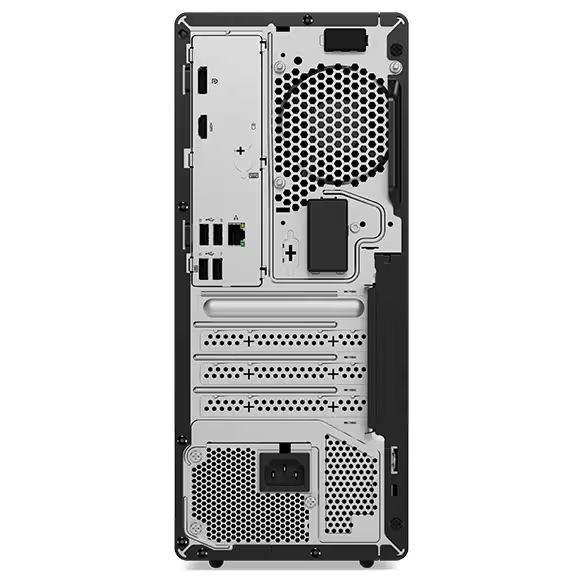

    Rear:


    • 4 x USB-A (hi-speed USB)
    • HDMI 2.1 (supports resolution up to 4K@60Hz)
    • DisplayPort 1.4
    • Optional: 2 x Serial
    • Ethernet (RJ45)
    • Optional: 2 x PS2
    • Optional: Parallel


    Expansion Slots:


    • Optional: PCIe x16 Gen 3
    • Optional: PCIe x1
    • Optional: M.2 SSD Gen 4x4
    • Optional: 2230 M.2 WiFi


    Internal Bay:


    • Optional: 2 x SATA ports


    External Bay:


    • Optional: Slim optical disc drive (ODD)


    USB port transfer speeds are approximate and depend on many factors, such as processing capability of host/peripheral devices, file attributes, system configuration and operating environments; actual speeds will vary and may be less than expected.



    Wireless

    • WiFi 6E*AX211
    • WiFi 6 AX201


    * 6GHz WiFi 6E operation is dependent on the support of the operating system, routers/APs/gateways that support WiFi 6E, along with the regional regulatory certifications and spectrum allocation.
    Design

    Dimensions (H x W x D)

    346mm x 145mm x 296mm / 13.6” x 5.7” x 11.6”

    Weight

    Starting at 5.9kg / 12.9lbs

    Color

    Raven Black
