The

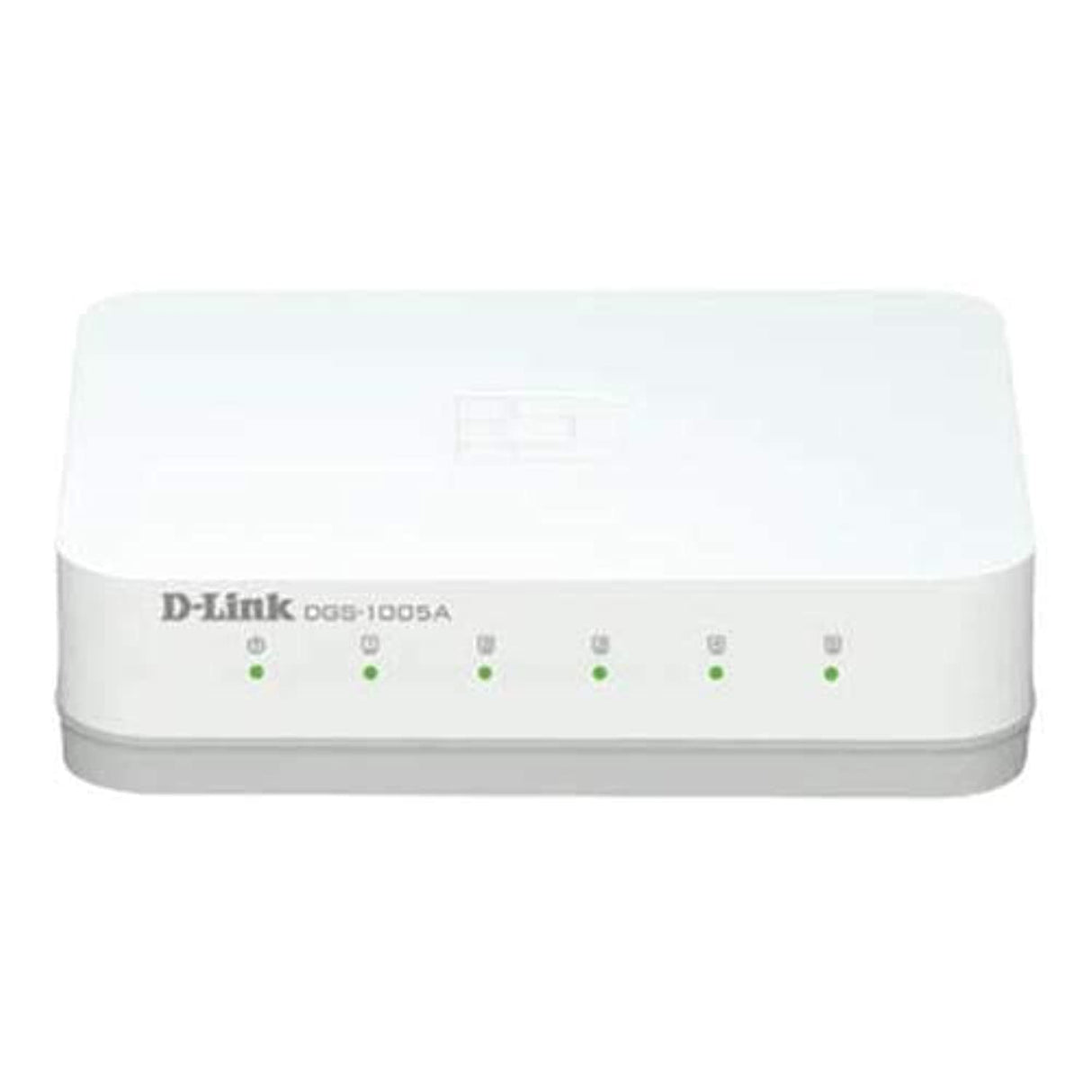

is an unmanaged, plug-and-play desktop switch designed for high-speed wired network expansion in home and small office environments. It provides five 10/100/1000 Mbps ports and features D-Link Green energy-saving technology.
Specifications
According to information from D-Link and various retailers, the key specifications of the D-Link DGS-1005A are as follows:
| Attribute | Detail |
|---|---|
| Interfaces | 5 x 10/100/1000Base-T (Gigabit Ethernet) ports |
| Switching Capacity | 10 Gbps |
| Max. Packet Forwarding Rate | 7.44 Mpps (million packets per second) |
| Jumbo Frame Support | Up to 9,720 bytes |
| MAC Address Table Size | 4K entries |
| Cooling | Fanless (silent operation) |
| Dimensions (W x D x H) | 91 x 73 x 22 mm |
| Weight | 0.08 kg (80 g) |
| Power Consumption (Maximum) | 3.90 W |
| D-Link Green Features | Power saving by link status and cable length; Energy Efficient Ethernet (EEE) |
