Description
Description

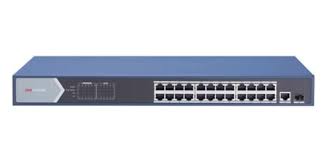

Hikvision offers several 24-port gigabit PoE switches, including unmanaged models like the
and smart managed models like the
, designed primarily for video security systems. These switches feature Power over Ethernet (PoE) support, gigabit network access, and robust build quality.
Key Specifications (DS-3E1526P-SI Smart Managed Model)

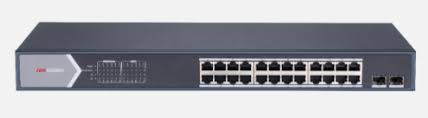

The smart managed series, such as the Hikvision
DS-3E1526P-SI
, offers advanced features for deployment, monitoring, and expansion of surveillance systems via software platforms like Hik-Partner Pro.
- Ports: 24 × gigabit PoE RJ45 ports and 2 × gigabit SFP fiber optical ports.
- PoE Standard: Supports IEEE 802.3af and IEEE 802.3at standards, providing up to 30 W max power per port.
- PoE Power Budget: A total power budget of 370 W is available for connected devices.
- Switching Capacity: Features a high switching capacity of 56 Gbps.
- Long Range PoE: AF/AT cameras can reach up to 300 m in extend mode.
- Management Features: Includes network topology management, alarm push, network health monitoring, VLAN, link aggregation (LACP), PoE watchdog, and 6 kV surge protection.
- Physical: Comes in a solid, high-strength metal shell and is rack-mountable.
