The
is a high-performance, Layer 3 managed switch featuring multi-gigabit and PoE++ ports, designed for demanding enterprise network environments. Its key features include "Etherlighting" ports for visual diagnostics and seamless integration with the UniFi ecosystem.
Key Specifications
The switch includes 16 GbE RJ45 ports (8 PoE+, 8 PoE++), 8 1/2.5 GbE RJ45 ports (all PoE++), and 2 10G SFP+ ports. It offers a total PoE budget of 400W, with maximum power delivery of 15.4W for PoE, 30W for PoE+, and 60W for PoE++. The switch has a switching capacity of 112 Gbps and a total non-blocking throughput of 56 Gbps. It is a Layer 3 managed switch with a 1.3" touchscreen display, 1U rack mount form factor, and is ready for DC power backup. It supports advanced features like static routing, inter-VLAN routing, DHCP server, LACP aggregation, 802.1X control, and IP-Based ACLs.
Features and Use Cases

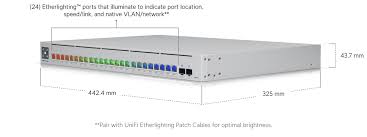

- Etherlighting™ Ports: Ports provide visual cues for location, speed, link status, and VLAN/network information.
- High-Power PoE++ Output: Powers devices like Wi-Fi 6/6E access points, IP cameras, and VoIP phones with up to 60W per port.
- Intelligent Management: Integrates with UniFi Network Controller for centralized configuration and monitoring.
- Pro A/V Support: Includes profiles for Dante, Q-SYS, and NDI.
- Near-Silent Cooling: Designed with airflow to minimize fan noise.
