The
is a high-density, double-conversion online Uninterruptible Power Supply (UPS) designed for critical IT infrastructure, providing clean and consistent power protection. It is available in both rackmount and tower configurations (models SRT5KRMXLI and SRT5KXLI, respectively) and features scalable runtime capabilities.
Key Features & Specifications
The

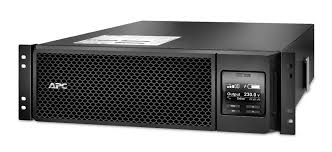

APC Smart-UPS SRT 5000VA 230V
is known for its reliability and advanced management features, making it suitable for servers, data centers, and industrial applications.
- Topology: True double-conversion online, which provides consistent power by isolating equipment from all power fluctuations and ensuring zero transfer time to battery during power events.
- Power Capacity: 4.5 kW / 5.0 kVA.
- Output Waveform: Pure sine wave, which is recommended by server manufacturers using active power factor corrected (PFC) power supplies.
- Outlets: Includes a combination of 6x IEC 60320 C13 and 4x IEC 60320 C19 outlets, plus 2x IEC Jumpers.
- Connectivity: Features a pre-installed Network Management Card, a SmartSlot for additional accessories, USB, and serial (RJ-45) ports for comprehensive remote monitoring and control.
- Battery Management: Utilizes intelligent, temperature-compensated charging to maximize battery life and performance. The batteries are hot-swappable and user-replaceable, minimizing downtime.
- Efficiency: Achieves high operating efficiency (up to 98%) in its patented "Green Mode" under good power conditions, reducing energy consumption.

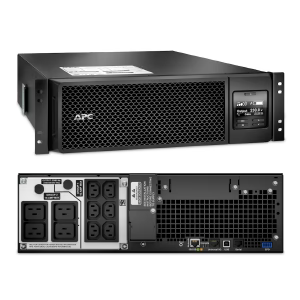

- Form Factor: The product is available as a 3U rackmount unit (model SRT5KRMXLI) or a tower unit (model SRT5KXLI), which can be converted to rackmount with an optional rail kit
